Description
Overview

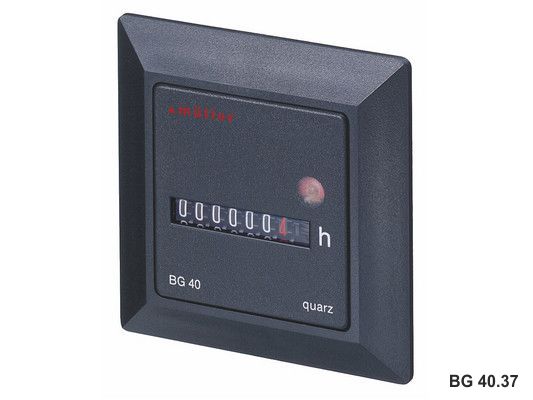

- Elapsed Time Counter
- DC Voltage Range
- Large format numerals 4.4mm in height
- Easy to connect – screw terminals accessible from near
- With retaining clip
- With universal connections
- Touch Proof connections to VBG4
- Low-Noise
- BG – Quartz Stabilized
- BG – Large Voltage Ranges
- BG – Direct Current
Technical Data – BG Direct Current
| Supply voltages (please state when ordering) | 12-48 V DC (Standard) alt. 5-24 V DC alt. 36-120 V DC |
| Special voltages | on request |
| Voltage tolerance | ±10% |
| Power consumption (real power) | ca. 20 mW at 12 V DC |
| Counter capacity | 999.999 h. |
| Accuracy of reading | 0,1 h. |
| Numeral height | 4,4 mm |
| Numeral colour | white, decimal figures red |
| Operation indicator | fast-running wheel |
| Permitted ambient temperature | –10°…+50°C |
| Housing | self-extinguishing thermoplastic |
| Mounting | Panel |
| Mounting aperture | Square: 45 x 45 mm Circle: Ø 50,5 mm |
| Type of connection | Universal: Screw, soldered and 6.3 x 0.8 mm AMP plug-type connections |
| Type of protection | Front IP 50 to DIN EN 60529 (with ring seal 101.003.004: IP 54) |
| Class of protection | III (bis 48 VDC) when fitted in accordance with regulations |
