Description
- Overview

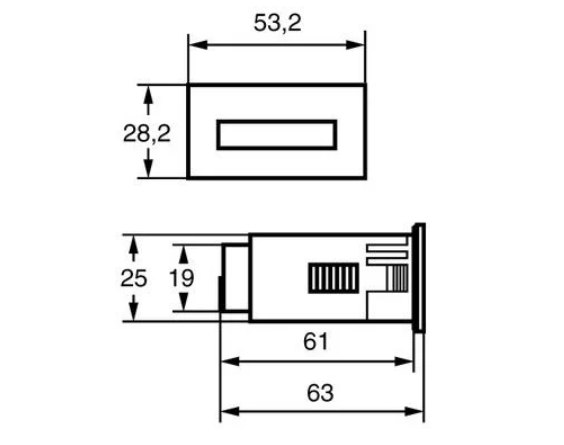

- Front Panel 53 x 28 mm
- Integral locking spring
- With universal connections
- Touch proof connections to VBG4
- Mounting aperture 50 x 25 mm
- Technical Data
| Supply voltages (Please state when ordering) | 12-48 V DC |
| Special voltages | 5-24 V 100-300 V DC |
| Other voltages | on request |
| Voltage tolerance | ±10% |
| Power consumption (real power) | approx. 20 mW at 12 V DC |
| Counter capacity | 99.999 h. |
| Accuracy of reading | 0,1 h. |
| Numeral height | 4,4 mm |
| Numeral colour | white, decimal figures red |
| Operation indicator | LED |
| Permitted ambient temperature | –10°…+50°C |
| Housing | self-extinguishing thermoplastic |
| Mounting | Panel |

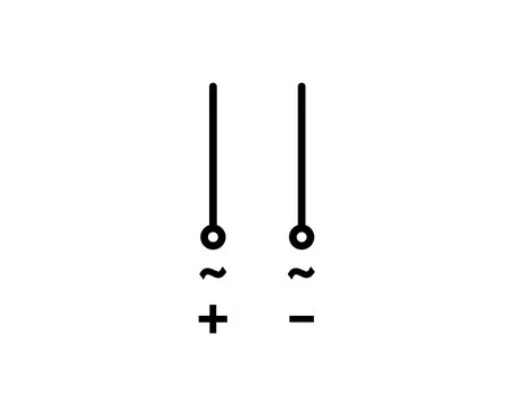

| Type of connection | Universal: Screw, soldered and 6.3 x 0.8 mm AMP plug-type connections |
| Type of protection (DIN EN 60529) | Front IP 65 |
| Class of protection | III (up to 48 V DC) |
