Description
- Overview
- Daily or Weekly Program
- Slim format at 52.5 mm
- Easy programming with captive setting keys
- Easy to read switching program
- Analogue Display (Clock Hands)
- Manual override switch “Permanent OFF / Automatic / Permanent ON”
- Technical Data
| Supply voltages | 230 V, 50-60 Hz other voltages on request |
| Power consumption (real power) | 0,4 |

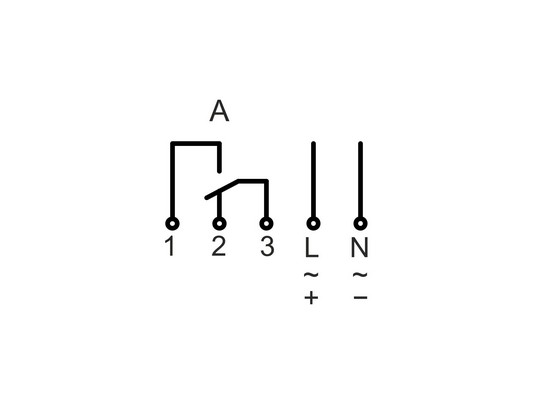

| Switch (potential-free) | Change-over, contact gap < 3mm (µ) |
| Manual override switch | Permanent ON / Permanent OFF / AUTO |
| Contact material | AgSnO2 |
| Switching capacity resistive load: inductive load: | 16 A / 250 V~ at cosφ=1 2,5 A / 250 V~ at cosφ=0,6 |
| Min. switching power | 1.000 mW (10 V / 10 mA) |
| Filament Lamp, Halogen Lamp | 2.000 W |
| Fluorescent Lamp uncopensated | 1.000 W |
| Fluoresent Lamp series compensated | 750 W |
| LED (230 V~) / CFL | 200 W |
| Minimum switching interval day dial: week dial: | 30 Min. 2 Std. |
| Time base | Quartz |
| Accuracy (at 23°C) | ≤±1 Sec./day |
| Power back-up (at 20°C) | approx. 100 h. |
| Permitted ambient temperature | –5°…+50°C |
| Housing | self-extinguishing thermoplastic |

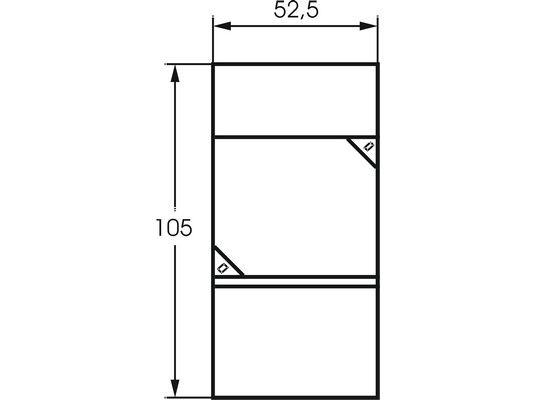

| Dimensions | 45 x 52,5 x 55 mm |
| Mounting | 35 mm DIN-rail and wall |
| Type of connection | Screw terminals |
| Type of protection | IP 20 to DIN EN 60529 |
| Class of protection | II when installed according to regulations |
| Mode of operation (DIN EN 60730-1) (DIN EN 60730-2-7) | 1 BSTU |
| Degree of contamination (DIN EN 60730-1) | 2 |
| Rated surge voltage (DIN EN 60730-1) | 4 kV |
