Description

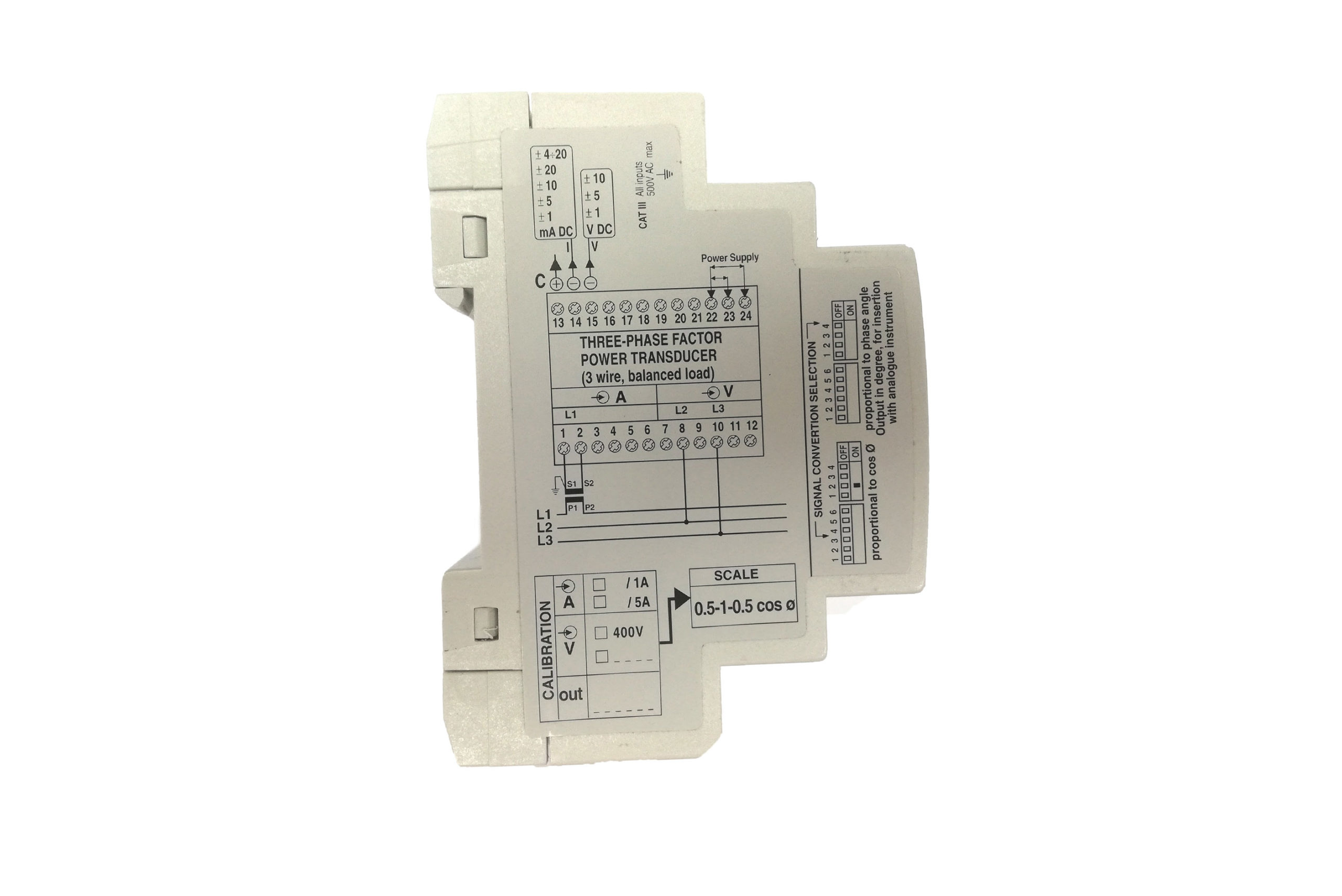

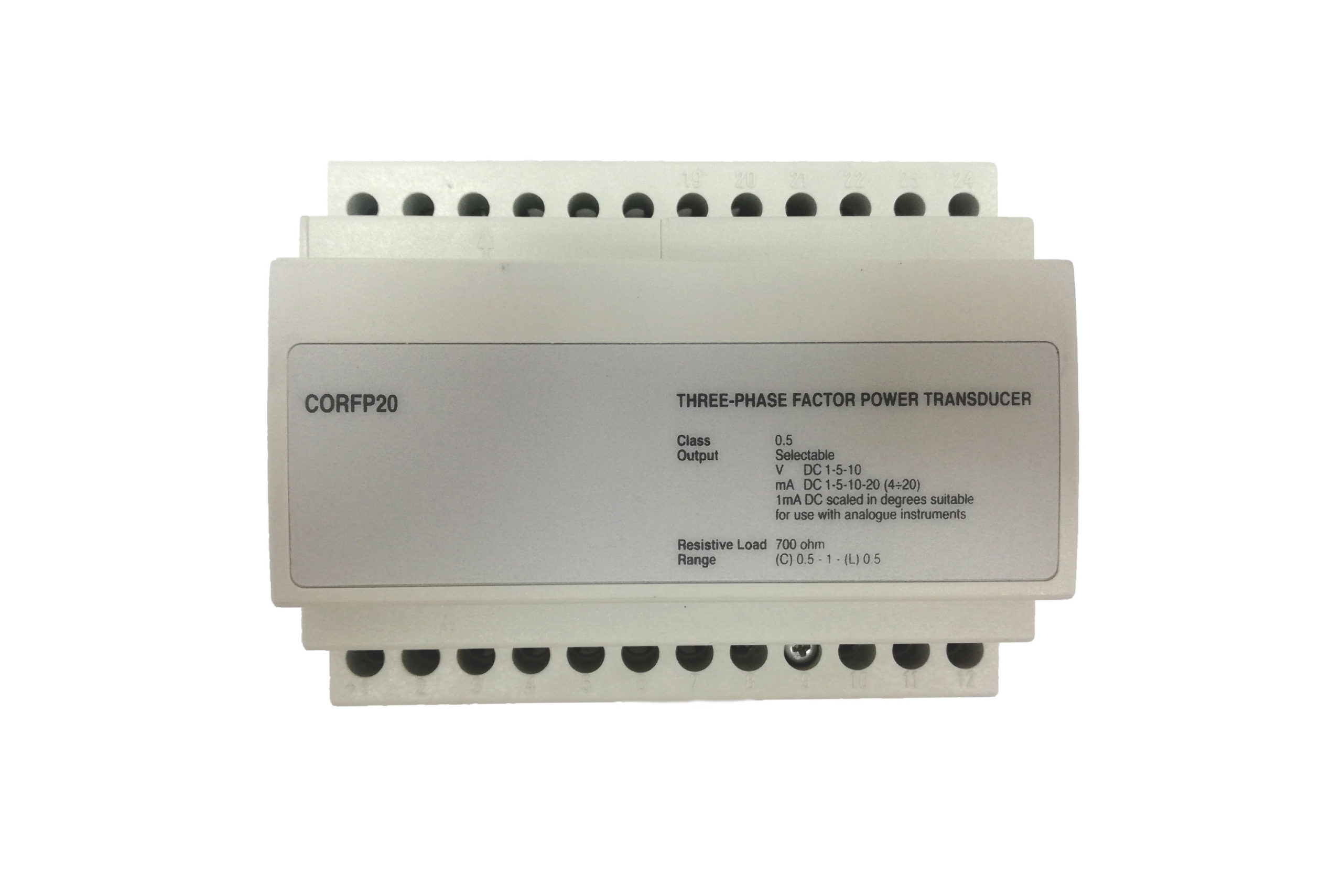

• Power Factor Transducer 1CORFP20

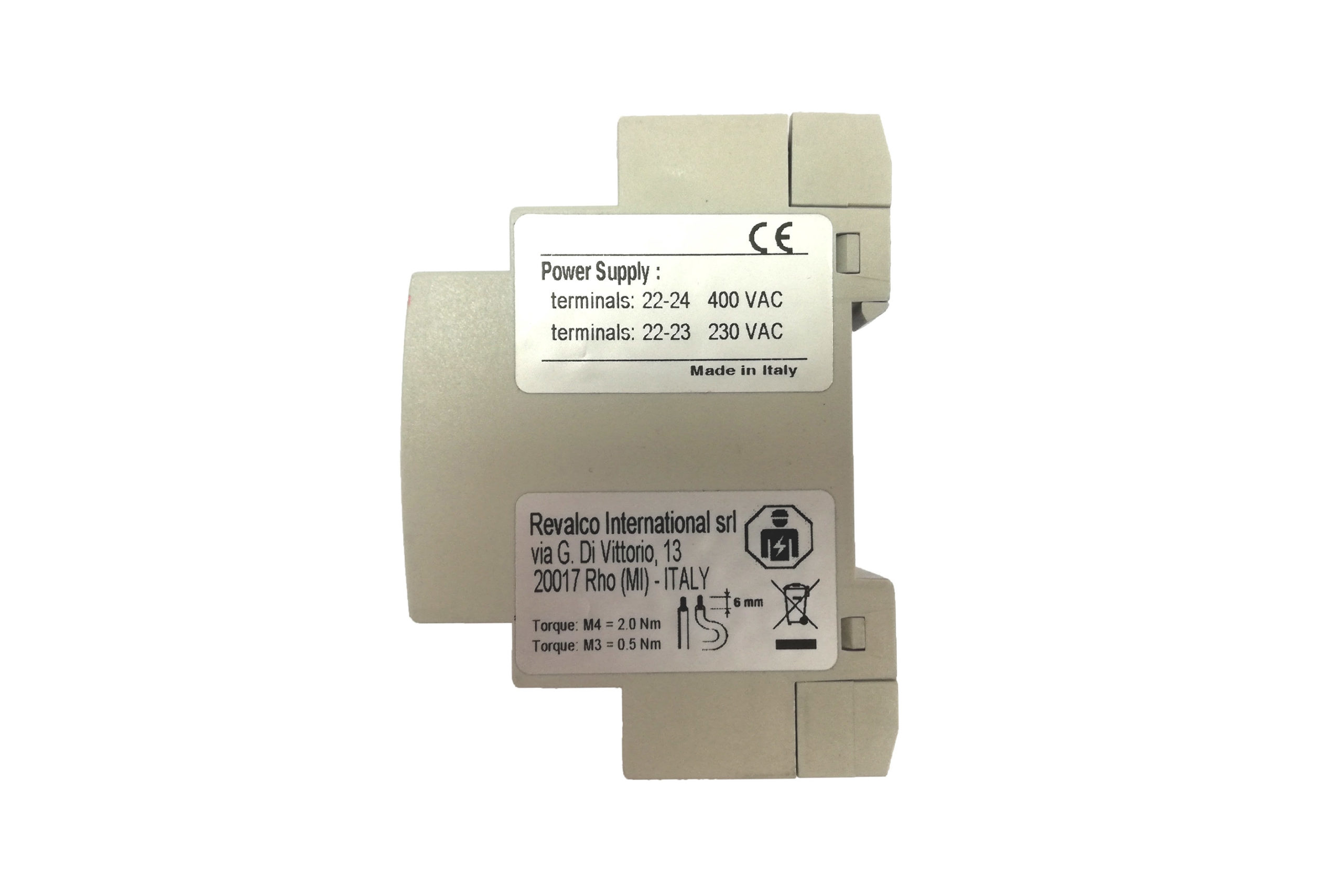

• Power Supply: 230VAC / 400VAC
• Nominal Input Voltage: 400VAC – Current: 5A AC
• Nominal Output Values: (+/- DC)
  * 1-5-10 V and 1/5/10/20/4-20 mA
• Accuracy Class: 0.5
• Burden: Power Supply <4VA Voltage <1VA – Current <0.8VA
• Dimensions: 6 DIN Modules
• Size: (H)85 (W)105 (D)58 mm
