Description

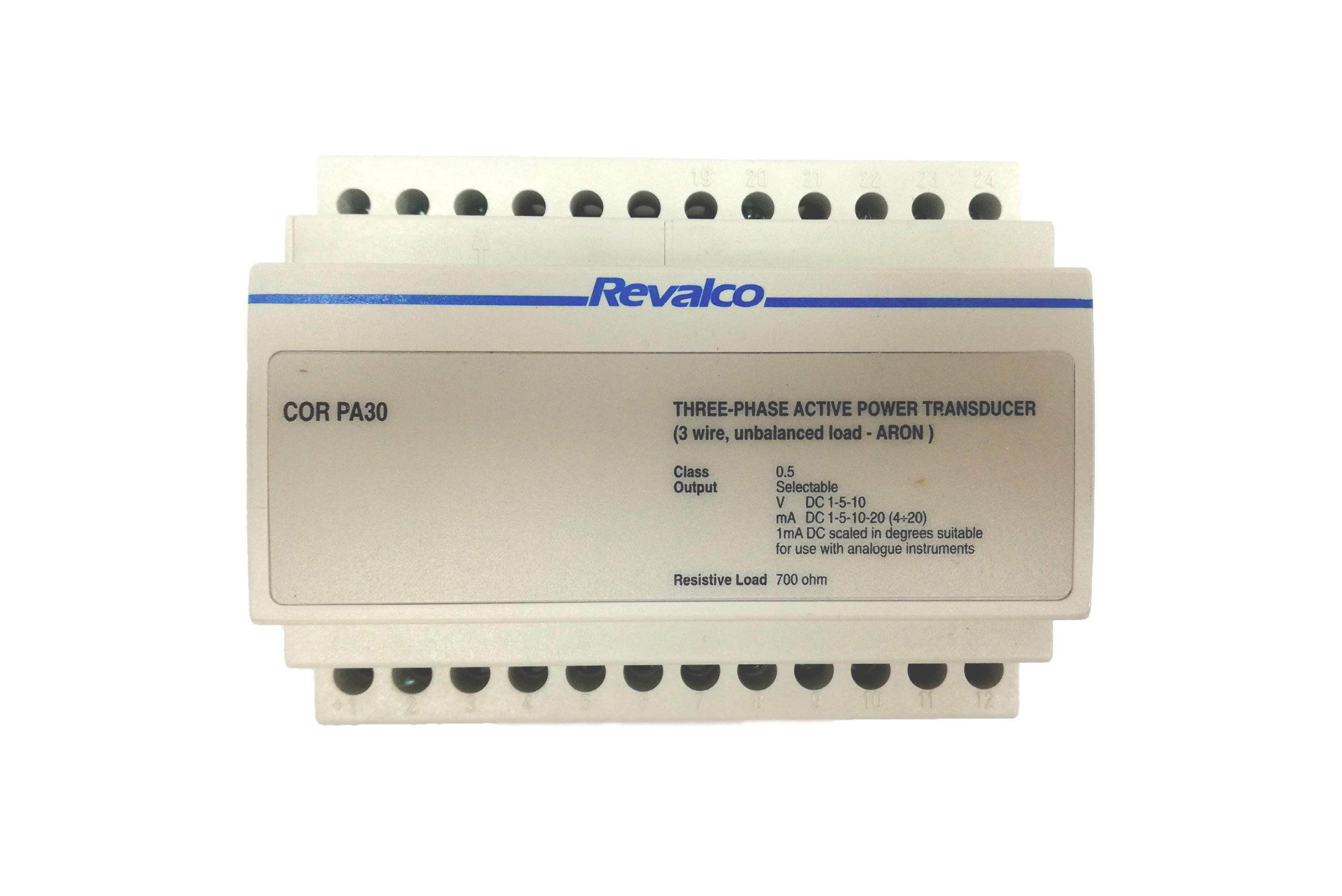

• Active Power Transducer 1CORPA30

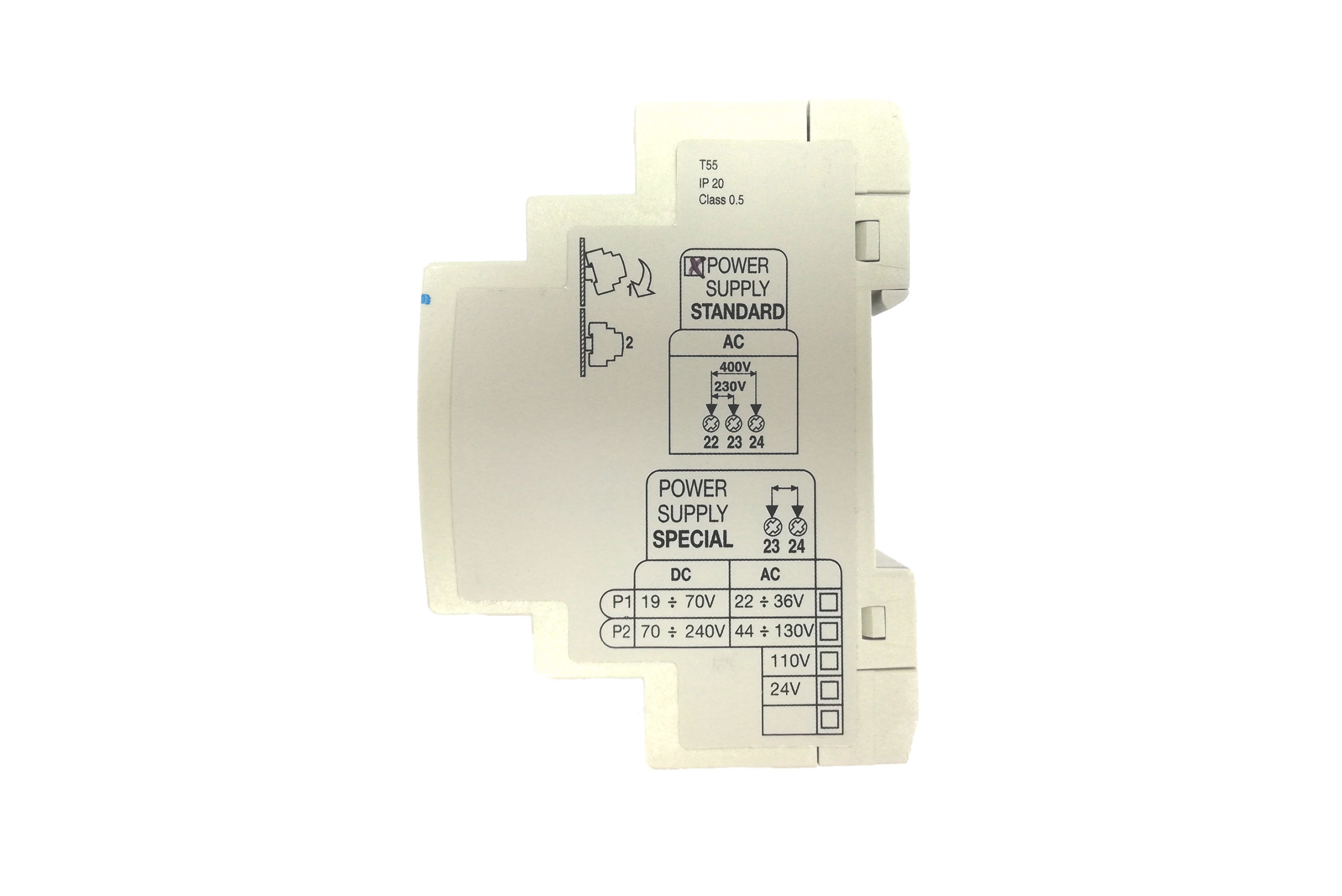

• Auxillary Power Supply 230V/440V AC 50-60Hz
• Nominal Input Values:
• * Voltage: 400V AC – Current: 5A AC
• Nominal Output Values (+/- DC)
  * 1-5-10 V and 1/5/10/20/4-20 mA
• Accuracy Class: 0.5
• Burden: Power Supply <4VA Voltage <1VA – Current <0.8VA
• Dimensions: 6 DIN Modules
• Size: (H)85 (W)105 (D)58 mm
