Description
Overview
- Analogue Photocell Switch – Twilight Switch
- Wall Mounting
- Adjustable 3 to 300 Lux
- Time delay approx. 1 min before switching takes place
- LED-adjustment aid, without delay
- Fitted for high lamp loads
- Double line entrance from below or through the housings rear pane.
Technical Data
| Supply voltages | 230 V, 50–60 Hz |
| Power consumption | 1 VA |
| Channel | Normally Open, 16 A 250 V AC |
| Contact material | AgSnO2 + W pre-make contac |
| Switching capacity resistive load:: inductive load: |
16 A / 250 V~ at cosϕ=1 16 A at cosϕ=0,6 |
| Min. switching power | 1.000 mW (10 V / 10 mA) |
| Max. starting current | 165 A / 20 mSek. (filament lamp) 800 A / 200 μSek. (fluorescent lamp) |
| Filament Lamp, Halogen Lamp | 3.000 W |
| Fluorescent Lamp uncompensated | 3.000 VA |
| Compact Fluorescent Lamp convent. lamp ballast |
1,000 VA |
| Compact Fluorescent Lamp electron. lamp ballast | 4 x electronic lamp ballast, power independent |
| LED (230 V~) / CFL | 400 W |
| Lux range | 3–300 Lux |
| Switching delay | approx. 1 min.. |
| Permitted ambient temperature | –50°…+50°C |
| Type of protection | IP 54 |

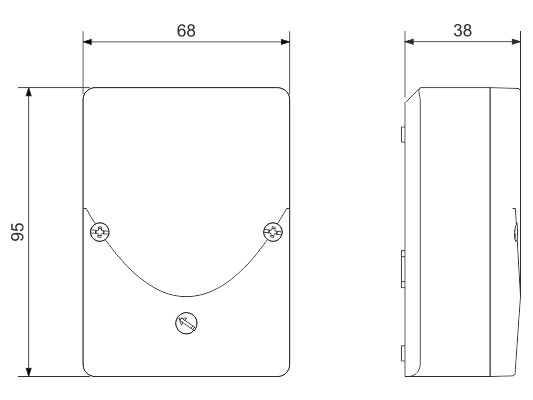

| Dimensions | 95 x 68 x 38 mm |
| Mounting | Wall |
| Hysteresis | approx. 50% |
