Description
- Function: Left – Right Inverse Timer
- Timer Range: 0.1S-240h (0.1 seconds – 240 hours) (Adjustable)
- Operating Voltage: AC/DC24-240V 50/60Hz
- Output Configuration: 2 x SPDT
- Delay Setting Method: Rotary Adjustment
- Delay Accuracy: Repeat Error <0.5%, Mechanical error <10%, Basic Error <0.1%, Voltage jump error <0.5% , temperature fluctuation error <0.05%/C.
- Reset Time: <500ms
- Indicator Light: The green LED indicator is always on when R2 is closed, and flashes for 0.5swhen R2 is disconnected to indicate that it is in the running mode Red LED indicates R1 status in real time.
- Mechanical Life: 1×10^5 (Resistive load, room temperature, 1s on & 9s off)
- Output Contact Capacity: AC/DC24-240V Power supply 10/16A (AC1-Resistive)
- Protection Degree: IP20
- Installation Method: 35mm Din Rail Type

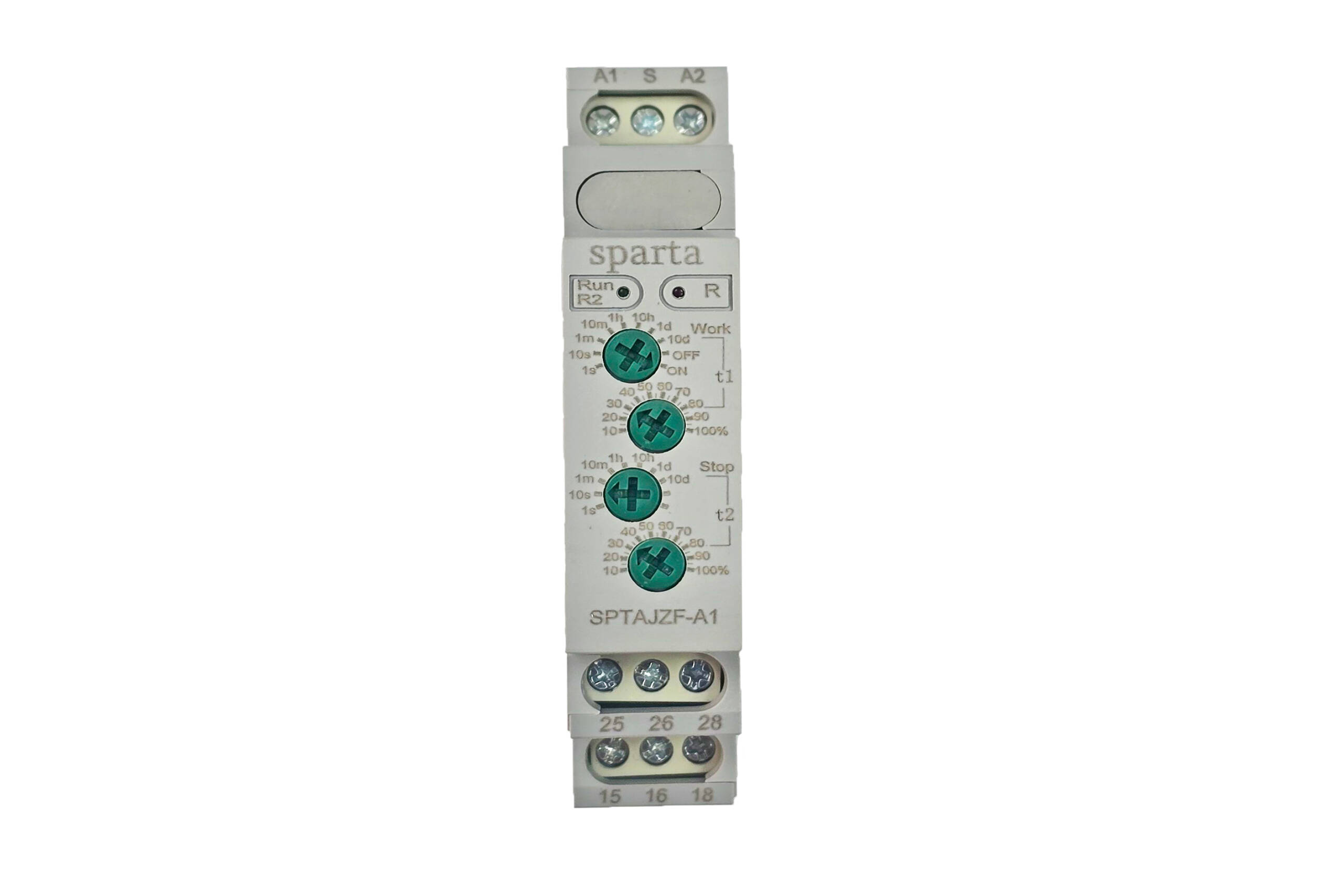

- Model: SPTAJZF-A1
- Make: Sparta
- Origin: China
