Description

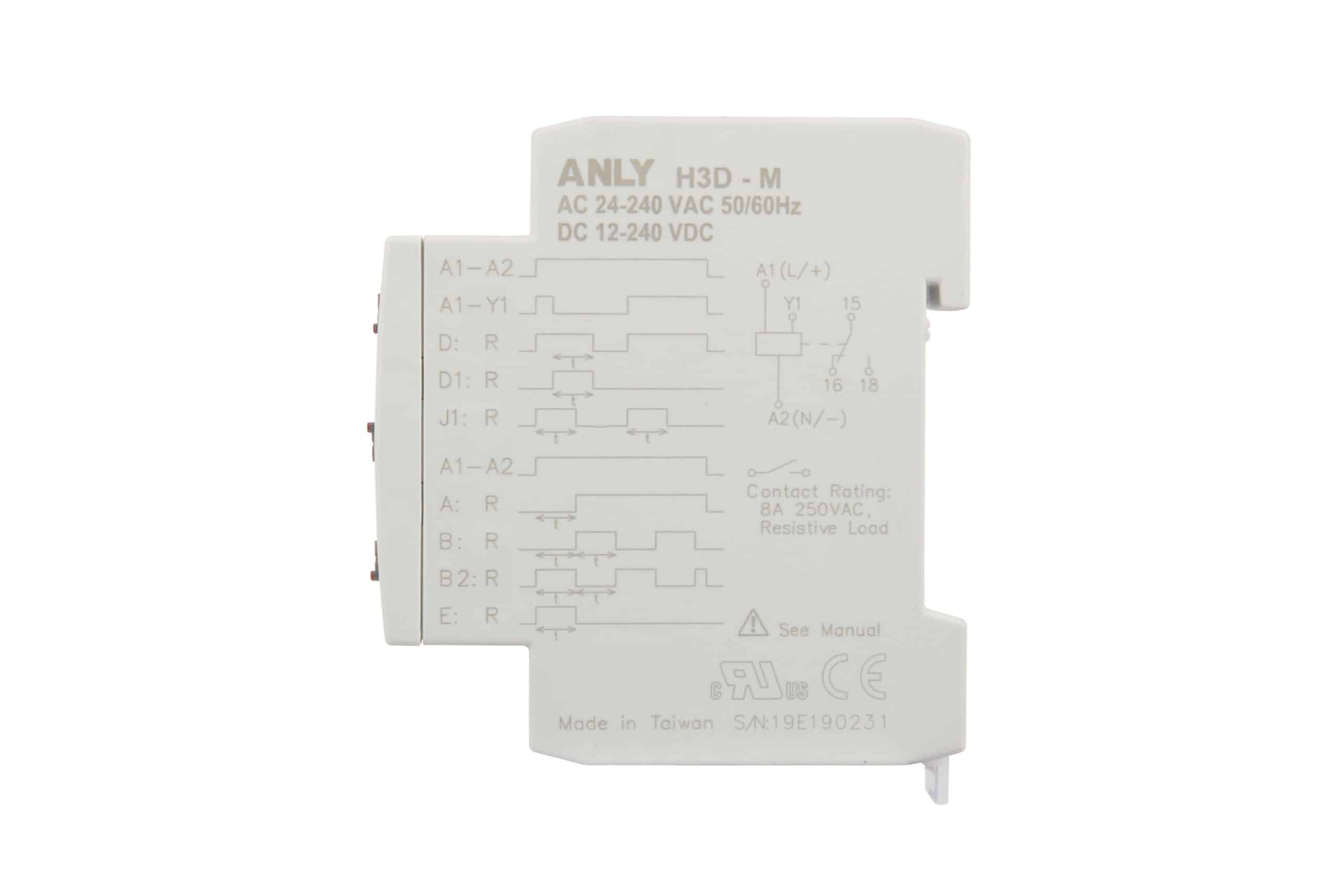

- Multifunction Timer Analogue Type – Din Rail Mounted
- Operating Voltage: AC 24-240V ; DC 12-240V
- Allowable Operating Voltage Range: 90-110% of rated operating voltage
- Rated Frequency: 50/60Hz
- Contact Rating: 250VAC 8A (resistive load)
- Reset Time: MAX 0.1s
- Power Consumption: Approx. 1.9VA
- Time Range: 1s / 10s / 100s / 10m / 100m / 10h / 100h
- Output Contact: 1C
- Output Mode: 7 Mode
- Standards: UL Listed, CE Certified
- Dimension: (H)71.2mm x (W)17.5mm x (D)60mm
- Weight: 62g
