Description

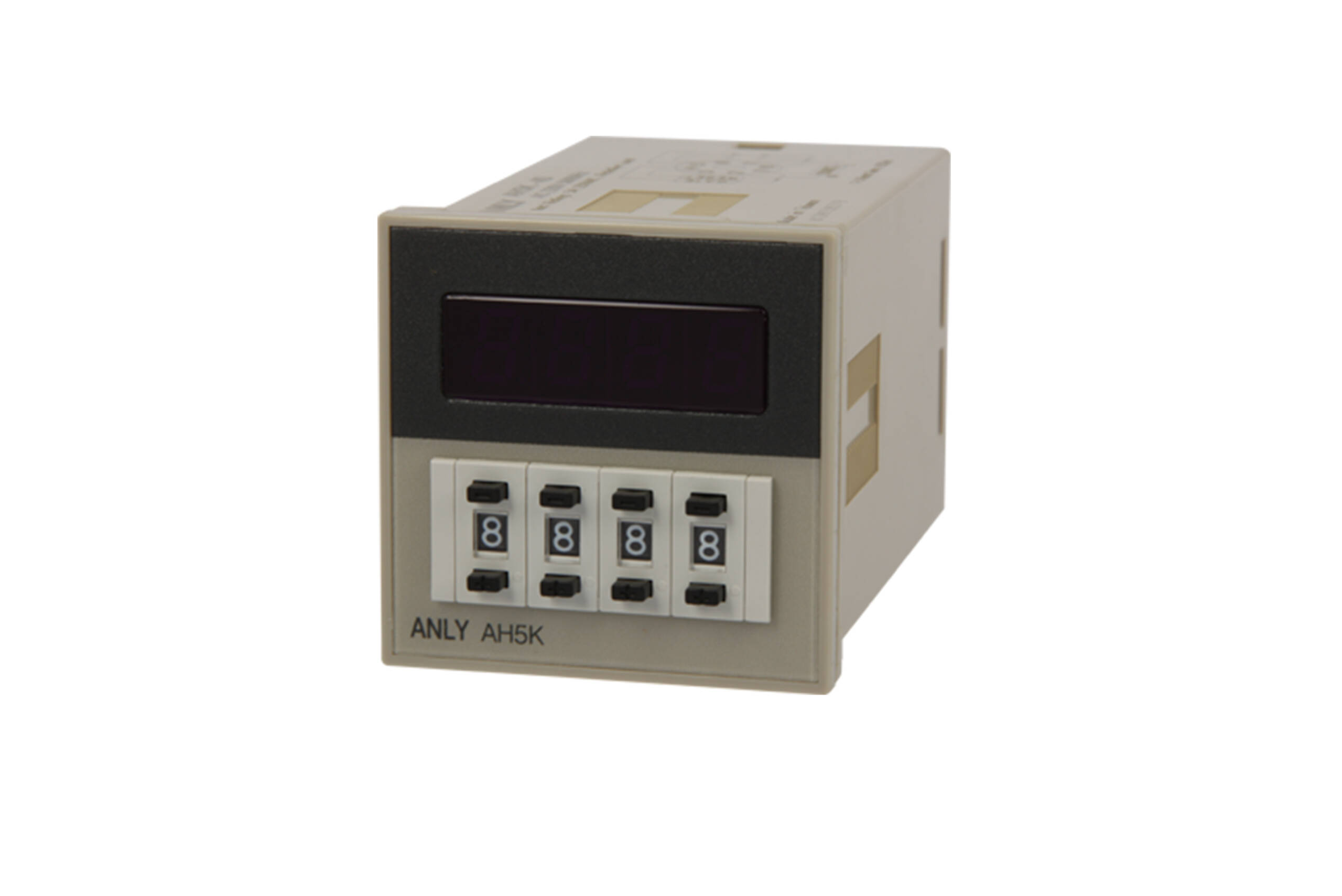

• Digital Preset Counter
• Available Operating Voltage: DC 12V, 24V
• Operating Voltage: AC 12V, 24V, 110V, 220V, 240V
• Allowable Operating Voltage Range: 85-110% of rated operating voltage
• Rated Frequency: 50/60Hz
• Contact Rating: 250VAC 5A (resistive load)
• Count Speed: MAX 60cps or 200cps
• Power Consumption: Approx. 2VA
• Display: 4 Digits (0-9999)
• Output Contact: 1C
• Number of Pin: 8 Pin – Round Type
• Dimension: (H)48mm x (W)48mm x (D)87mm
• Standards: UL Listed, C-UL Recognized & CE Certified
• Weight: 170g
