Description

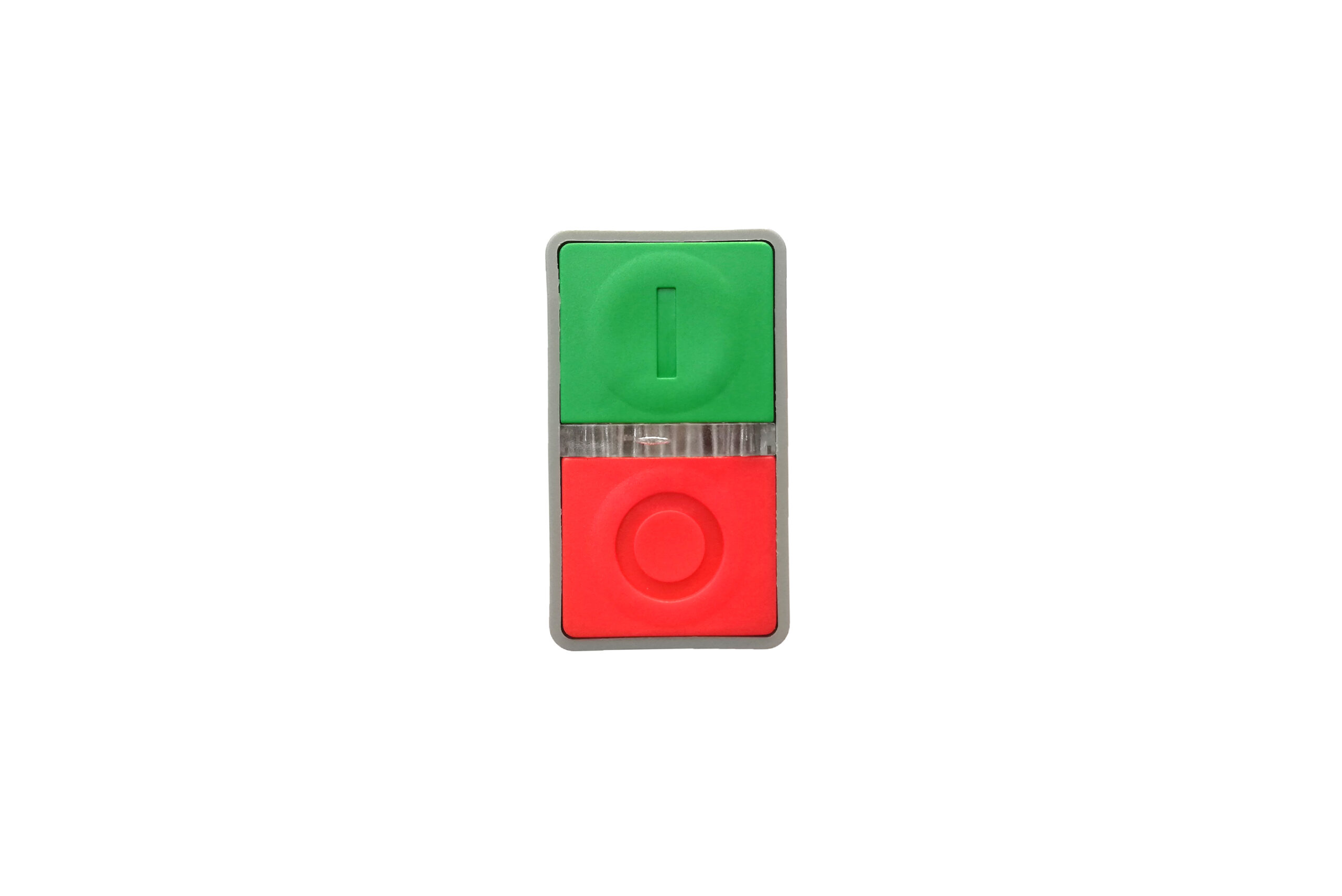

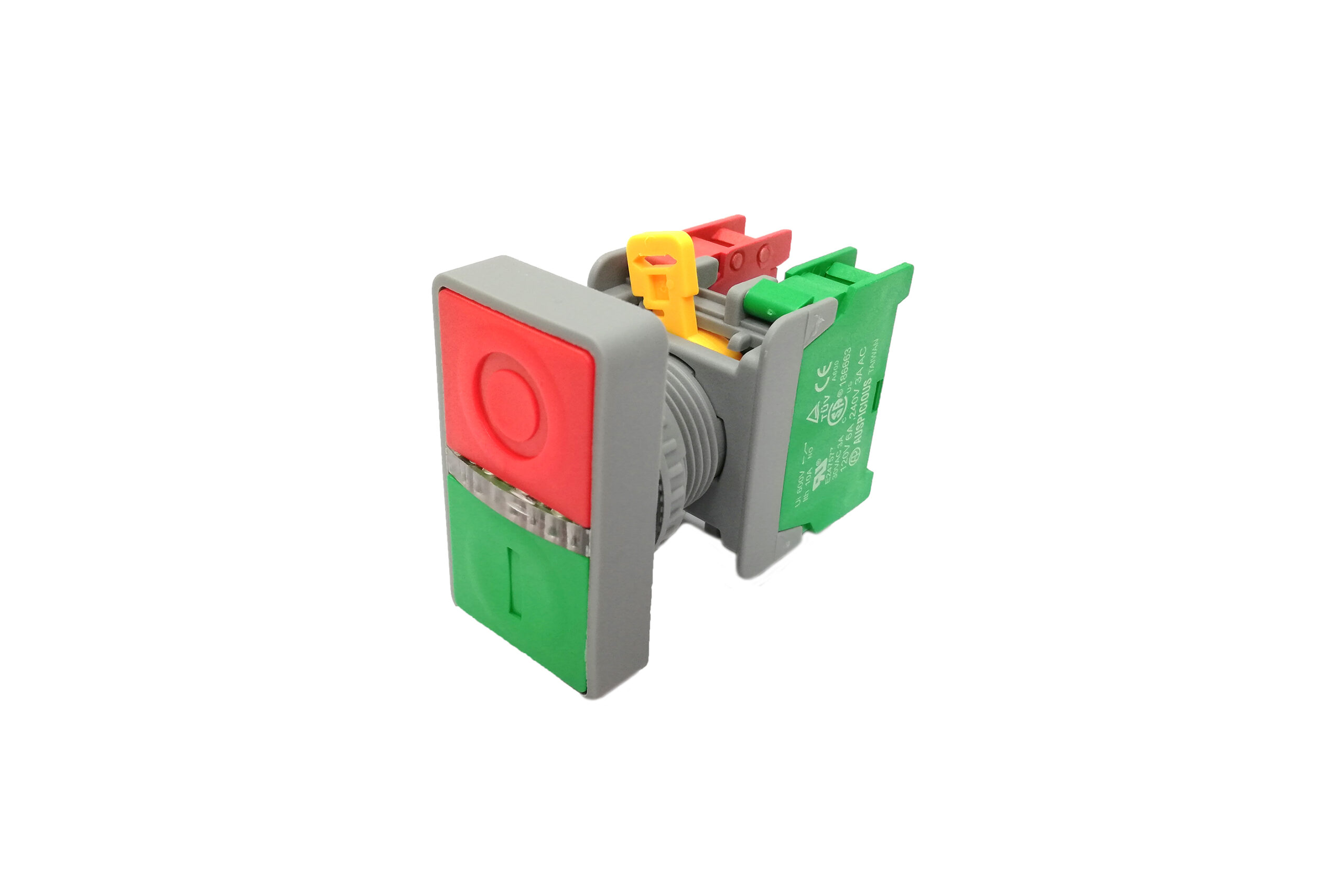

• Double Push Button
• Range of Product: DPB22 Series
• Operator Profile: Momentary Type
• Mounting Diameter: 22mm
• Thermal Current 1th 10A 50/60Hz
• Insulation Voltage Ui 600V
• Enclosed Thermal Current 1the 10A
• Short Circuit Current 1000A
• AC-15 120V 6A, 240V 3A
• IP Degree of Protection: IP65
• Product Certification(s): TUV, UL Listed, CSA,

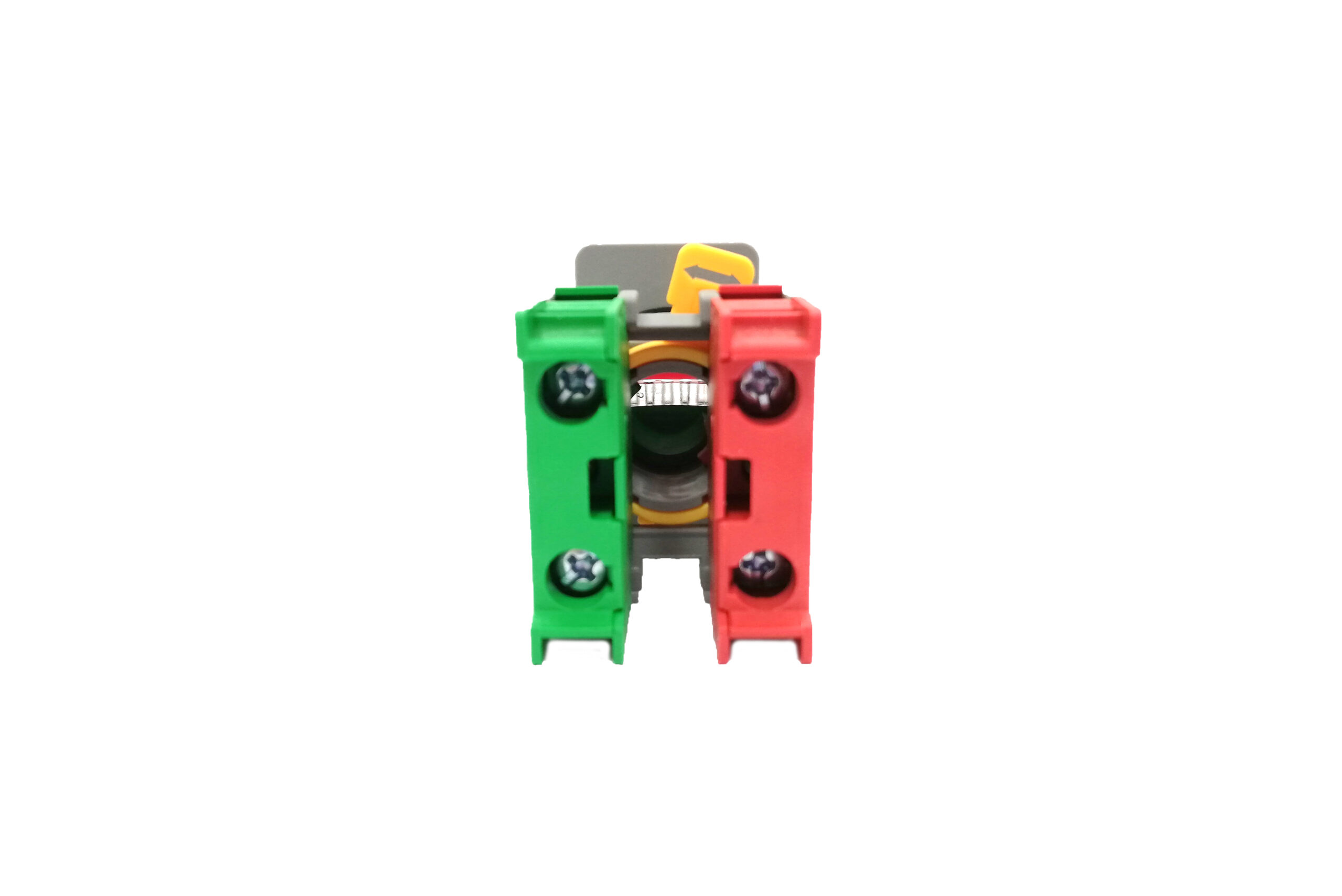

• Accessories: One (1) Normally Open & Close Contact Block
