Description

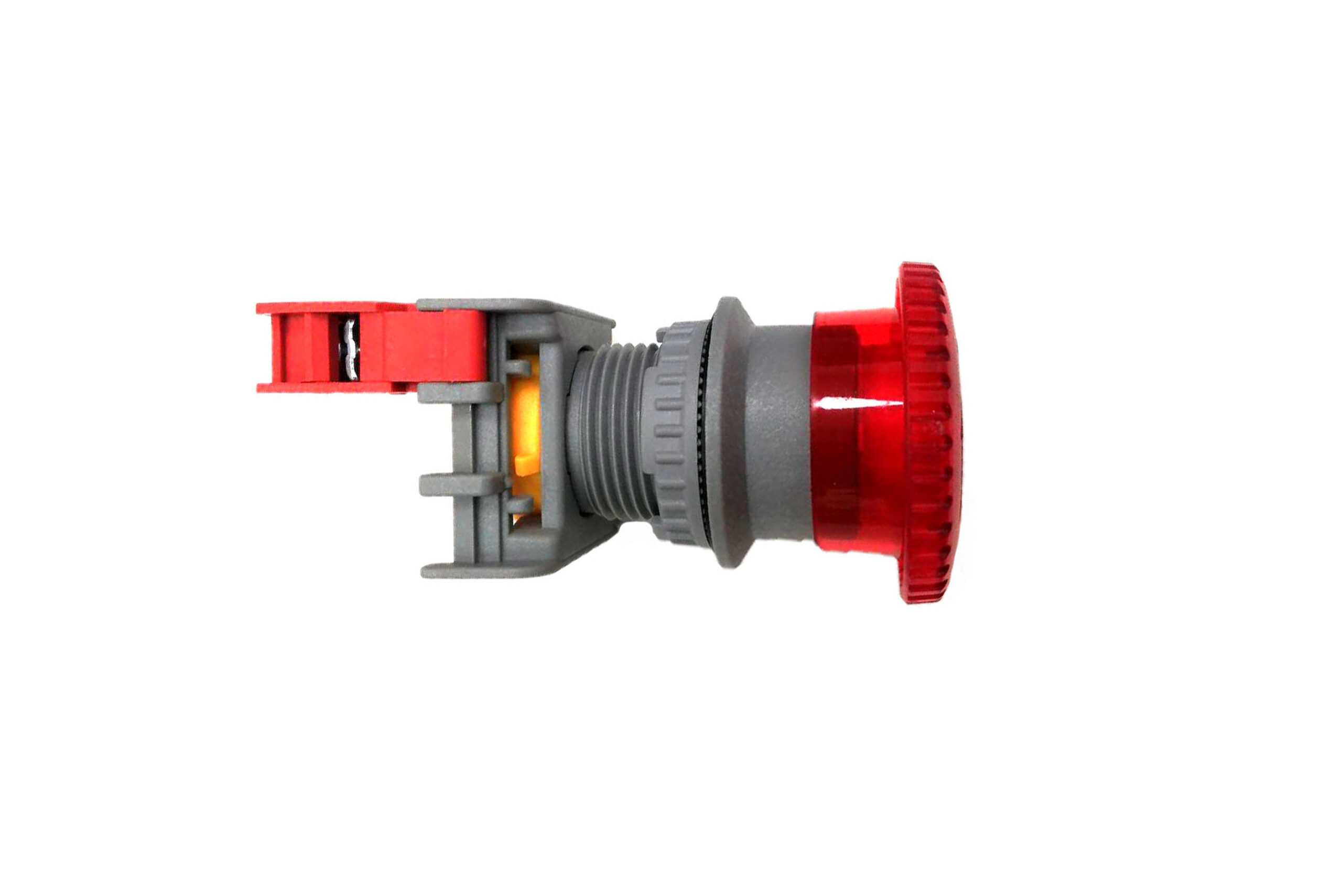

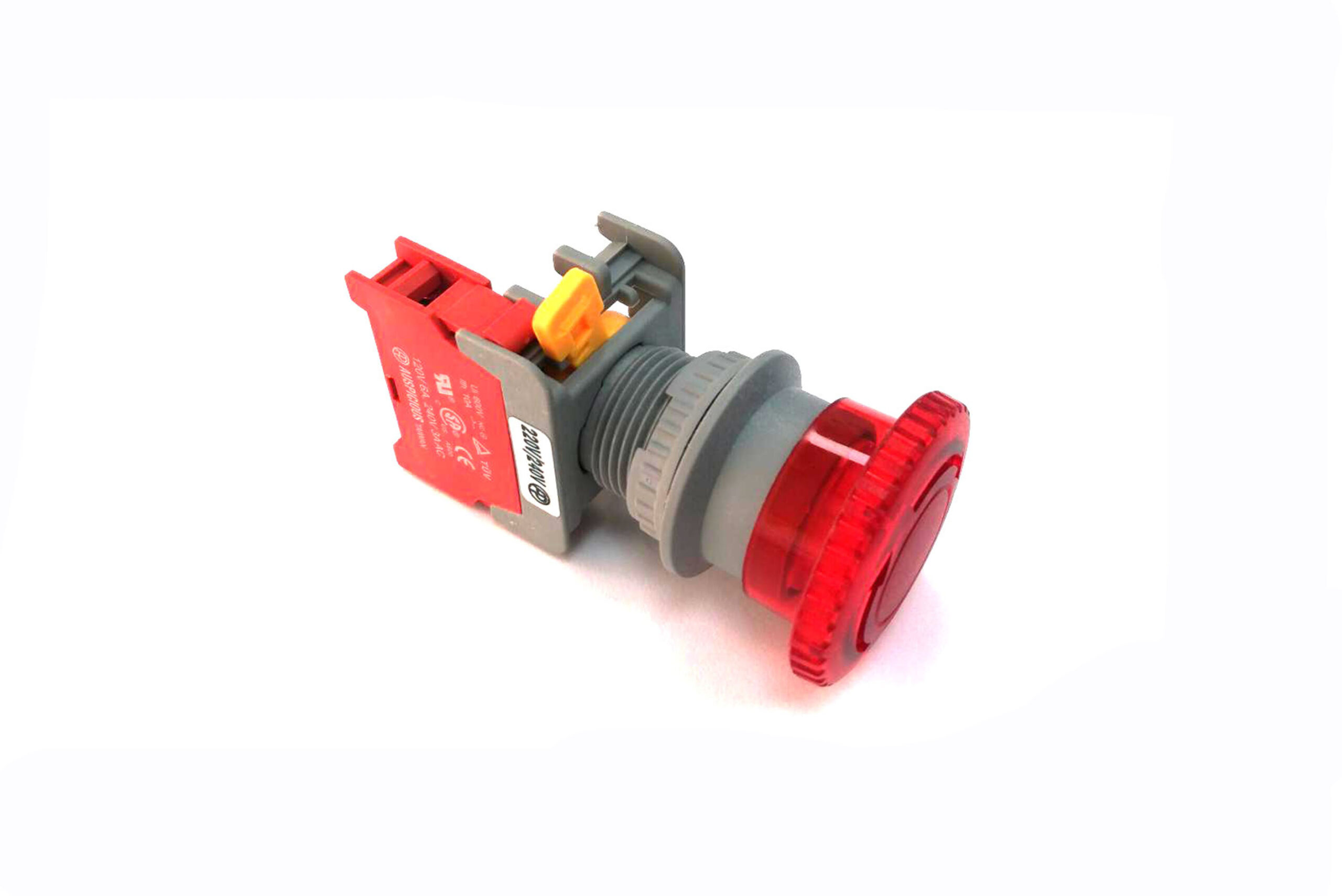

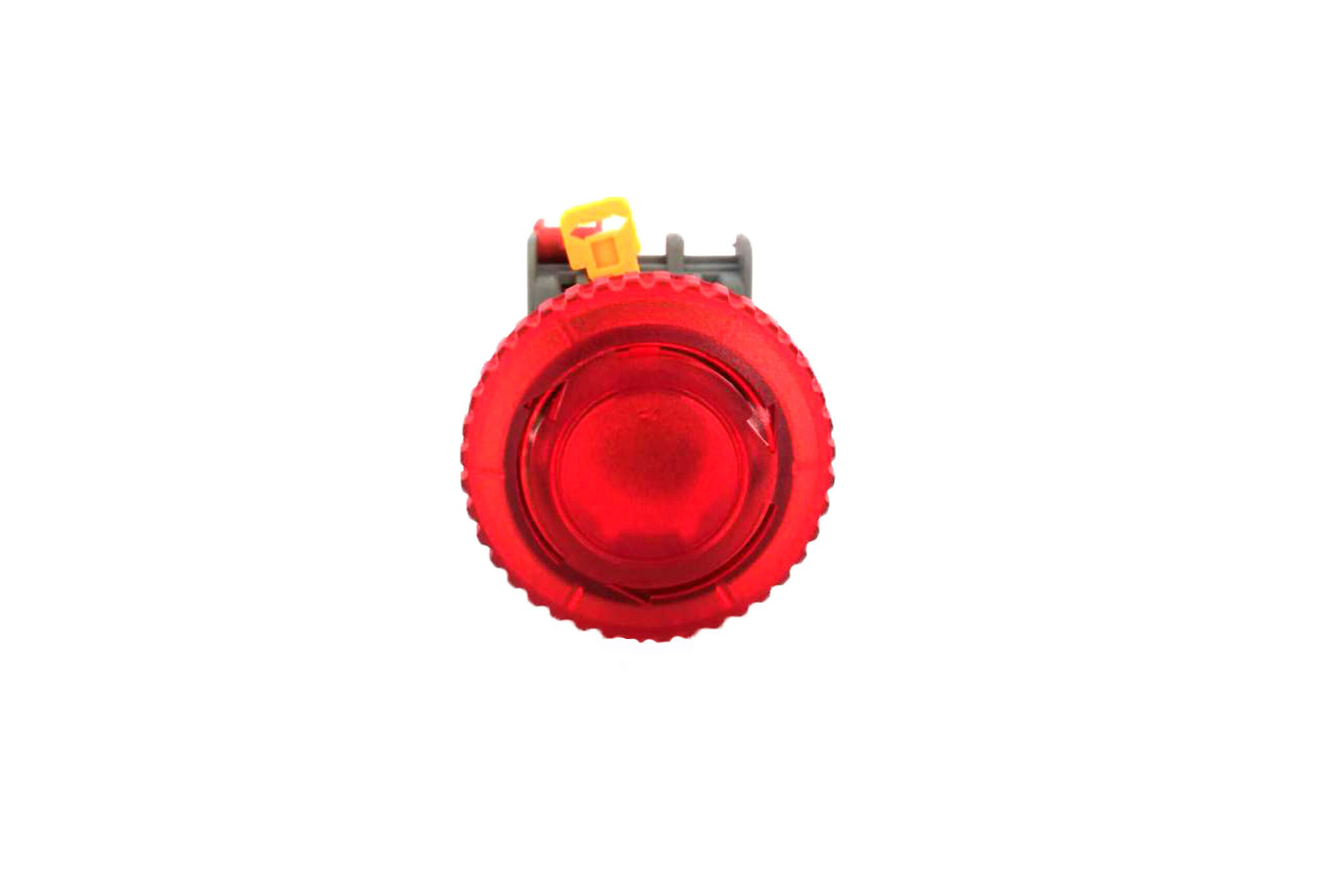

• Red Illuminated Emergency Stop Button
• Range of Product: MBL22 Series
• Operator Profile: Latching Type
• Mounting Diameter: 22mm
• Thermal Current 1th 10A 50/60Hz
• Insulation Voltage Ui 600V
• Enclosed Thermal Current 1the 10A
• Short Circuit Current 1000A
• AC-15 120V 6A, 240V 3A
• Bulb Selection: 6.3V, 12V, 24V, 110V, 220V BA9’s Type
• IP Degree of Protection: IP65
• Product Certification(s): TUV, UL Listed, CSA,
• Accessories: One (1) Normally Closed Contact Block & Lamp Holder Contact
