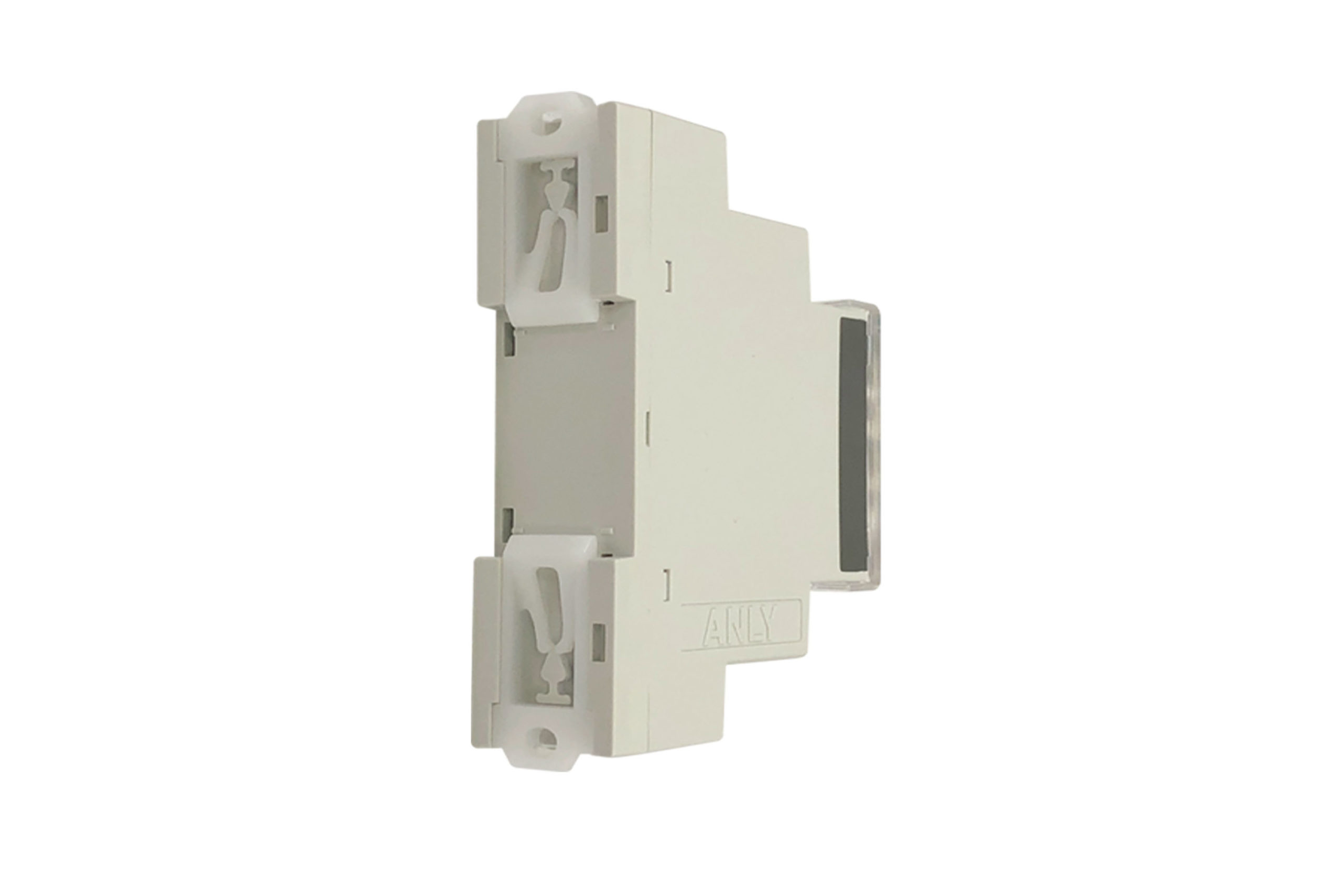

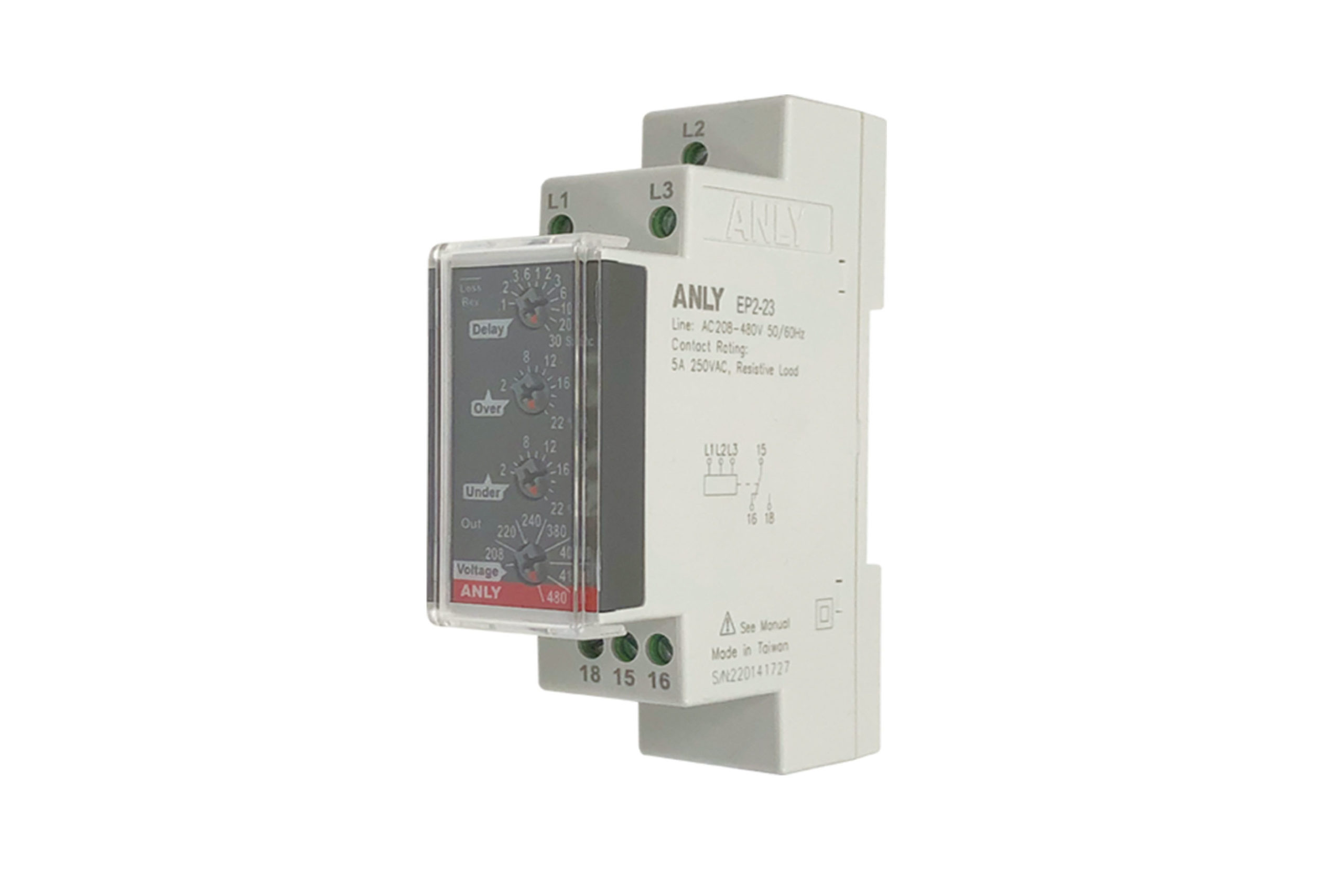

Three Phase Voltage Monitoring Relay 208-480V EP2-23 Anly

Three Phase Voltage Monitoring Relay AC208-480V

Make/Brand: Anly Electronics

Origin: Taiwan

Description

Operating Voltage: AC 208-480V
Rated Frequency: 50/60Hz
Monitoring Voltage: 208, 220, 240, 380, 400, 415, 480V
3-Phase Voltage Fault Monitoring:
*Phase Reversal
*Phase Loss
*Over Voltage
*Under Voltage
Over voltage : 2~22%
Under voltage : 2~22%
Over/under voltage trip delay time : 0.1~30 sec
Phase loss delay time : 0.2 sec fixed
Reset delay time : 1sec
Dimension: (L)90.6mm (W)22.5mm (D)56.6mm
