Description

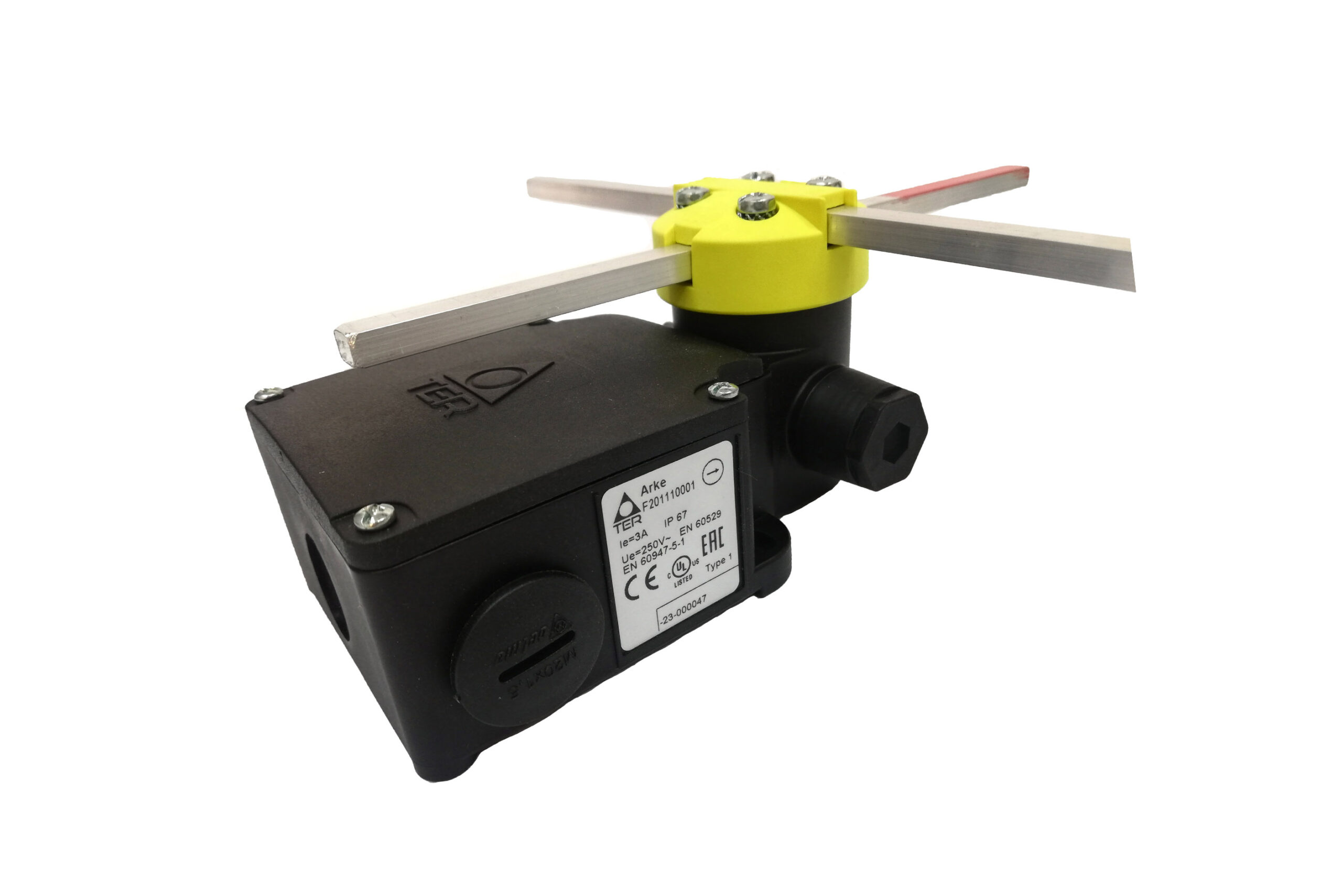

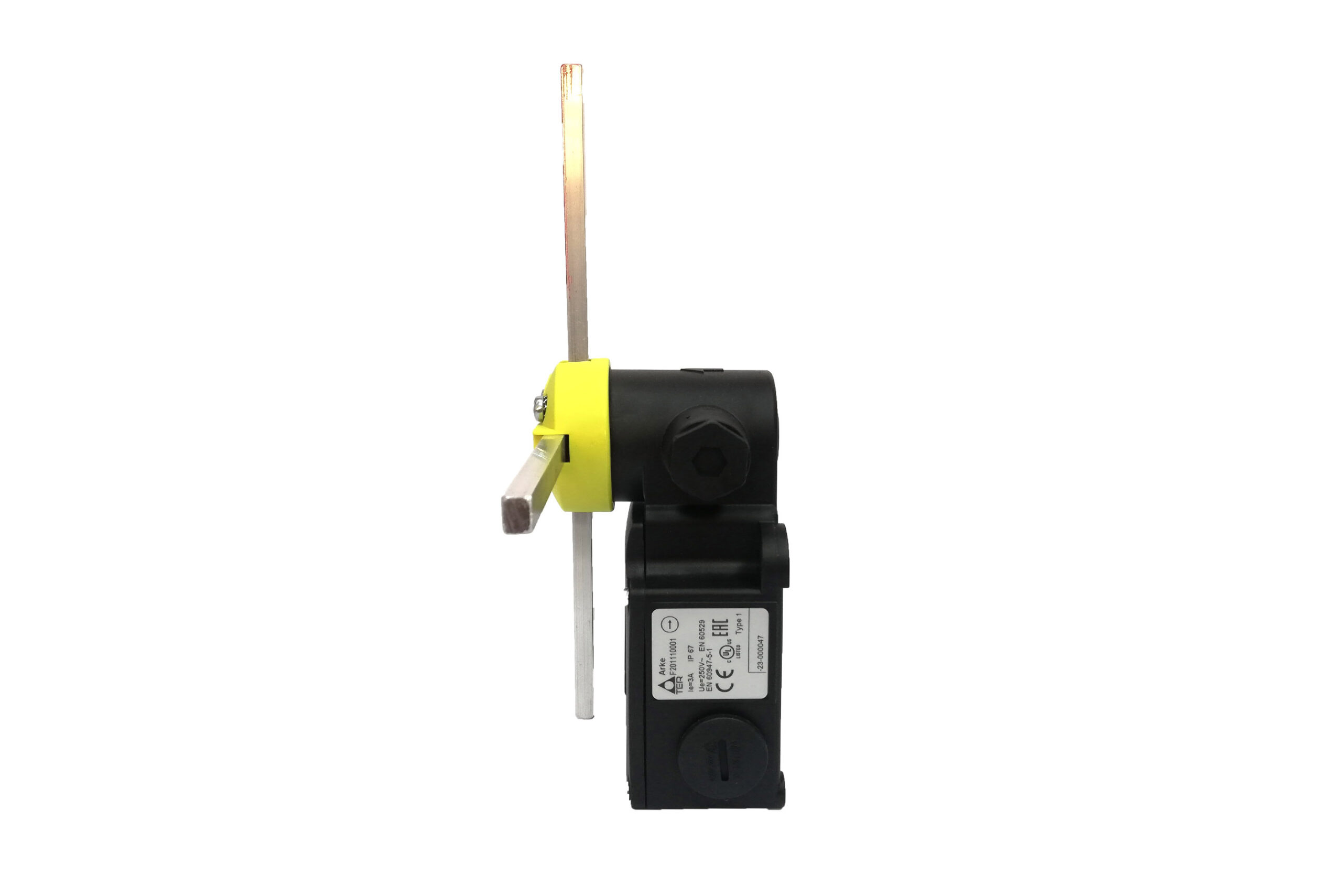

- Cross Bar Limit Switch for Crane Applications
- Connection: 1NC+1NC Staggered
- Position: 4 Maintained (Stop at 180° in each direction)
- Cross Rods: 2 x 200mm
- Contact Rating: AC15 250V 3A
- Rating Protection: IP67
- Compliance with Standards: EN 60204-1 EN 60947-1 EN 60947-5-1 EN 60529
- Ambient temperature – Storage: -53°C/+80°C
- Ambient temperature – Operation: -53°C/+80°C
- Degree of protection: IP67 max. with special M20 cable gland
- NEMA protection degree: Type 1
- Insulation category: Class II
- Cable entry: M20 cable gland
- Operating frequency: 3600 maneuvers / hour max
- Markings and approvals: CE EAC
- Model: F201110001
- Brand: TER
