Description

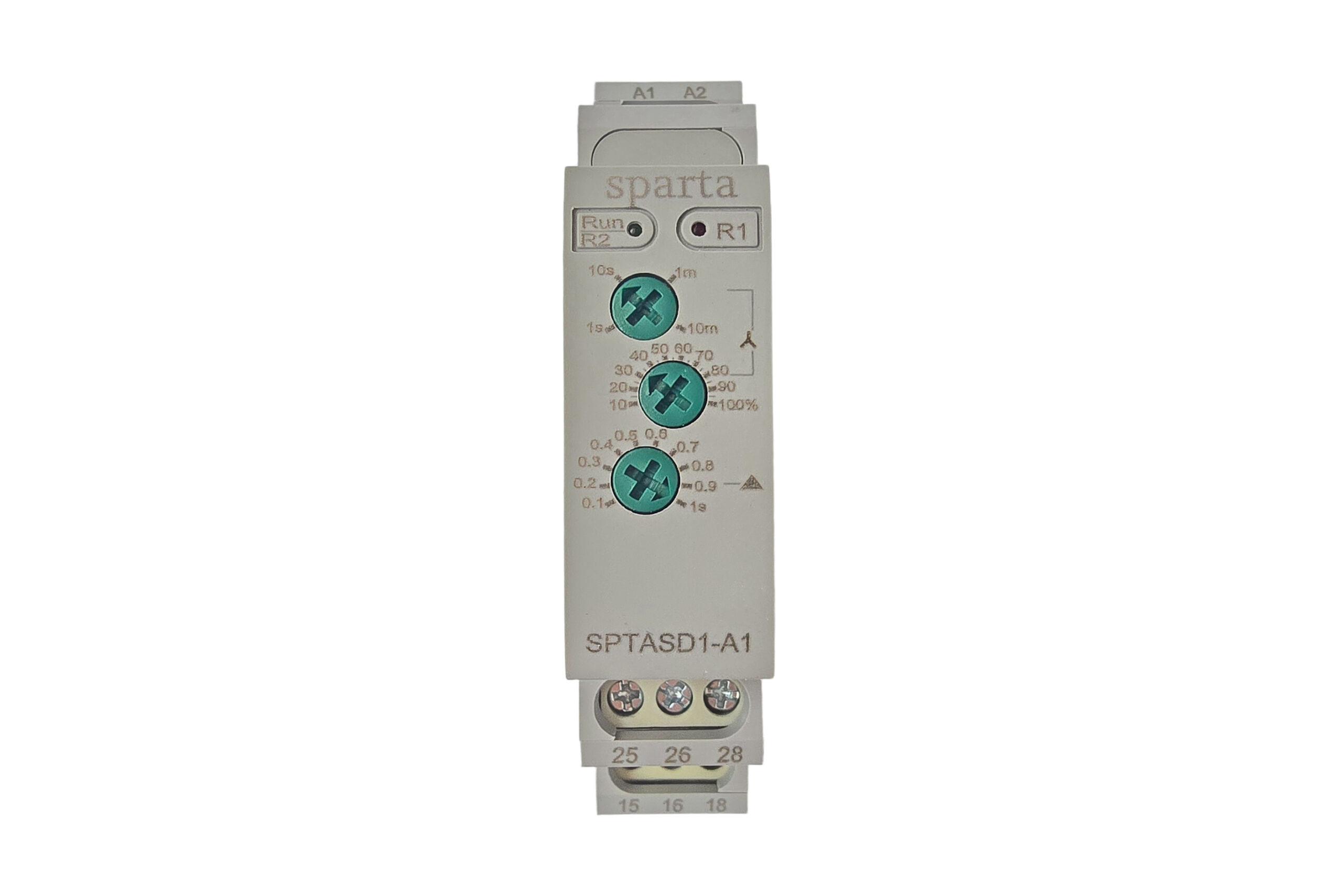

• Star Delta Starter Timer Relay
• Time Range: T1: 0.1S – 10 Min (Adjustable) T2: 0.1S to 1S
• Operating Voltage: AC/DC 100-380V
• Frequency: 50-60Hz
• Delay Accuracy: Basic error <1%, Mechanical error <10%, Repeat error <0.5%, Voltage jump error <1%
• Mechanical life: 1×10^5 (Resistive load, room temperature, 1s on & 9s off)
• Output Contact Capacity: AC/DC24-240V Power supply 10/16A(AC1-Resistive)
• Environment: Working temperature: -10-55℃ Relative humidity: ≤85% Altitude: ≤2000 meters Storage temperature: -20-75℃, no rain, snow, salt fog and corrosive
• Protection Degree: IP20

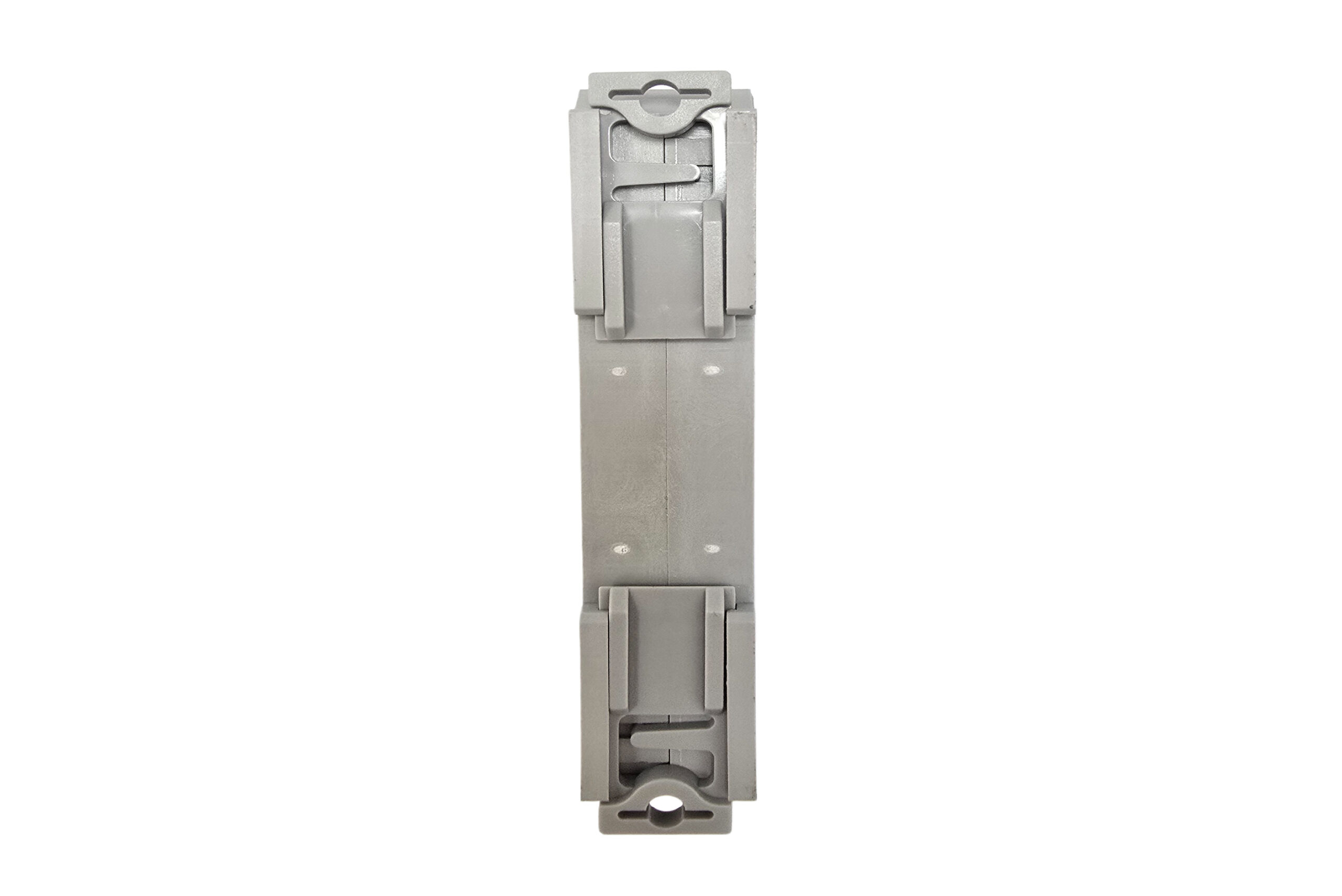

• Installation Method: 35mm Din Rail type
• Weight: 113 grams
• Model: SPTASD1-A2
• Make: Sparta
• Origin: China
