Description
- Overview
- Staircase lighting timer
- Electronic

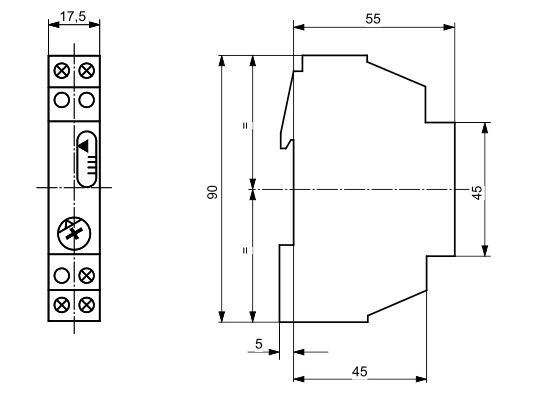

- DIN-rail mounting 17.5 mm
- Manual override for timed or permanent lighting
- Resettable
- Time Delay: 30 sec to 20 min
- Technical Data
| Supply voltages | 230 V, 50 Hz |
| Channel | Normally open, |
| Switching capacity resitive load: inductive load: |
16 A / 250 V~ at cosϕ=1 4 A at cosϕ=0,6 |
| Zero-cross switching | Yes / for relay-saving switching |
| Contact materia | AgSnO2 |
| Filament Lamp, Halogen Lamp | 3.000 W |
| Fluorescent Lamp uncompensated | 3.600 W |
| Fluorescent Lamp parallel compensated (130 μF) | 1.300 W |
| Compact Fluorescent Lamp | 18 x 7 W 12 x 11 W 10 x 15 W 10 x 20 W 10 x 23 W max. |
| Advance warning function (284 250) | DIN 18015-2, 2 warning signals (the light is blinking twice), 40 sec. and 30 sec. before switch-off |
| Glow Lamp load | max. 100 mA |
| Mounting | 35 mm DIN-rail |
| Permitted ambient temperature | –10°…+50°C |
| Type of protection | IP 20 |
