Description
Overview
- LED Dimmer / Universal dimmer

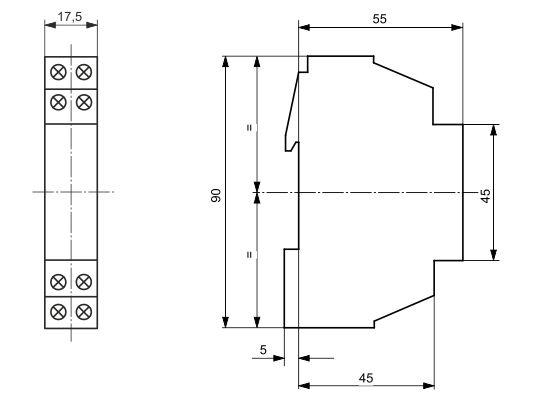

- DIN – Rail mounting 17.5mm
- For leading or trailing edge dimming

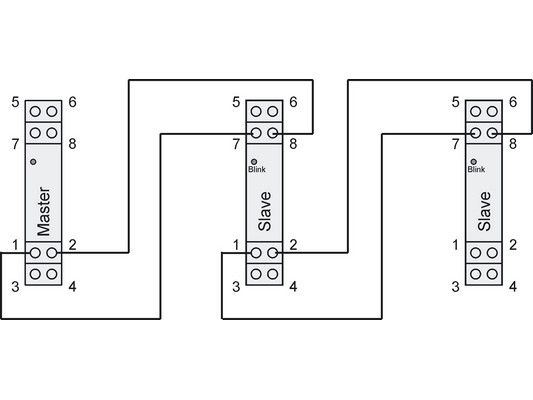

- Master-Slave-Function
Technical data R,L,C
| Supply voltage | 230 V 50 Hz |
| Power consumption | 3 VA |
| Mounting | 17,5 mm DIN-rail |
| Permitted ambient temperature | 0°…+40°C |
| Type of protection | IP 20 to DIN EN 60529 |
| Type of lamps | dimmable LED lamps incandescent lamps halogen lamps fluorescent lamps |
| Glow lamp load | max. 3 mA |
| Types of load | R, L, C |
| 230 V~ Incandescent lamps (R) | 15–400 W |
| 230 V~ HV-Halogen lamps (R) | 15–400 W |
| Ferromagnetic transformers for LV-halogen lamps (L) | 20–250 W |
| Electronic transformers for LV-halogen lamps (L) Leading Edge | 15–400 W |
| Electronic transformers for LV-halogen lamps (C) Trailing Edge | 15–400 W |
Technical data CFL
| Supply voltage | 230 V 50 Hz |
| Power consumption | 3 VA |
| Mounting | 17,5 mm DIN-rail |
| Permitted ambient temperature | 0°…+40°C |
| Type of protection | IP 20 to DIN EN 60529 |
| Type of lamps | dimmable LED lamps incandescent lamps halogen lamps fluorescent lamps |
| Glow lamp load | max. 3 mA |
| Types of load | CFL |
| Dimmable compact fluorescent lamps | 20-200 W |
Technical data LED
| Supply voltage | 230 V 50 Hz |
| Power consumption | 3 VA |
| Mounting | 17,5 mm DIN-rail |
| Permitted ambient temperature | 0°…+40°C |
| Type of protection | IP 20 to DIN EN 60529 |
| Type of lamps | dimmable LED lamps incandescent lamps halogen lamps fluorescent lamps |
| Glow lamp load | max. 3 mA |
| Types of load | LED |
| Dimmable 230 V~ LED lamps (leading edge dimming) | 4–100 W |
| Dimmable 230 V~ LED lamps (trailing edge dimming) | 4–100 W |
| Dimmable 12 V~ LED lamps (trailing edge dimming) with electronic transformer, type C | 1 lamp per transformer / max. 300 W (e.g. 6 transformer à 50 W) |
