Description
- Overview
- 1 Channel
- Daily & Weekly Program
- Astronomical Program
- Extra Switching times
- 60 Memory Locations
- 10 year battery-reserve
- Minimum Interval 1 min
- Switching Capacity 16 A
- Manual Permanent Mode
- Manual override
- Elapsed time and pulse counter
- Security by PIN-Code
- Illuminated Display
- Data-key function
- Technical Data
| Supply voltages | 230 V, 50-60 Hz other voltages on request |
| Power consumption (real power) | 0,8-1,8 W (depending on the switching status) |
| Channel (potential-free) | Change-over, contact gap < 3 mm (µ) |
| Contact material | AgSnO2 |
| Switching capacity per channel resistive load: inductive load: |
16 A / 250 V~ at cosφ=1 10 A at cosφ=0,6 |
| Min. switching power | 1.000 mW (10 V / 10 mA) |
| Max. starting current | 50 A |
| Filament Lamp, Halogen Lamp | 2.000 W |
| Fluorescent Lamp with electron. lamp ballast | 1000 W |
| Fluorescent Lamp with convent. lamp ballast | 750 W |
| LED (230 V~) / CFL | 400 W |
| Switching functions Astro: Night: Extra: |
ON/OFF ON/OFF ON/OFF |
| Offset Astro switching time | +/-90min. |
| Memory locations | 60 |
| Minimum interval | 1 Min. |
| Time base | Quartz |
| Quartz accuracy (at 20°C) |
≤±0,5 Sec./day (Quartz accuracy optimized for typical ambient conditions) |
| Power back-up (at 20°C) | approx. 10 years (depends on the Lithium-battery life) |
| Program security | unlimited (E2-Prom) |
| Display | high resolution LCD (visible area 7,5 cm2) |
| Permitted ambient temperature | –30°…+55°C |
| Housing | self-extinguishing thermoplastic |

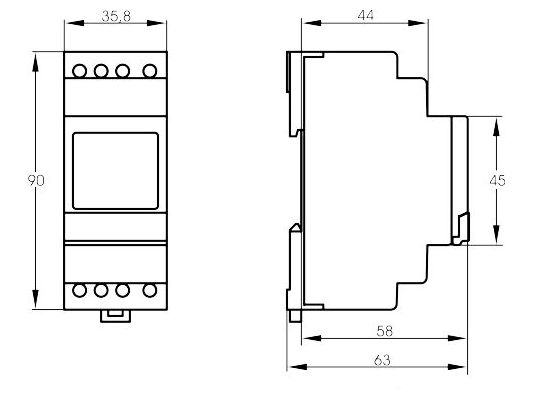

| Dimensions | 45 x 35 x 58 mm |
| Mounting | 35 mm DIN-rail |
| Type of connection | Screw terminals (pull-up type) |
| Type of protection | IP 20 to DIN EN 60529 |
| Class of protection | II when installed according to regulations |
| Mode of operation (DIN EN 60730-1) (DIN EN 60730-2-7) |
1 BSTU |
| Degree of contamination (DIN EN 60730-1) |
2 |
| Rated surge voltage (DIN EN 60730-1) |
4 kV |
| Accessories (not included in delivery) |
Data-key DK pro Programming package PP 50 pro Programming package PP 60 pro |
| Certification mark | VDE |
