Description
- Overview
- Countdown Timer
- Max Time 99:59:59 hh:mm:ss
- 1 change-over relay
- Time set accuracy 1 sec
- Output rating 8 A / 230 VAC
- Inputs for start and stop (230 VAC)
- Start and Stop button
- Easy to program and operate
- Technical Data
| Supply voltages | 230 V, 50–60 Hz other voltages on request |
| Power consumption (real power) | 0,7 W |
| Channel (phase voltage) | Change-over (monostable), contact gap < 3 mm (μ) |
| Contact material | AgNi |
| Switching capacity resistive load: inductive load: | 8 A / 250 V~ at cosϕ=1 6 A at cosϕ=0,6 |
| Min. switching power | 300 mW (5 V / 5 mA) |
| Max. starting current | 30 A |
| Filament Lamp, Halogen Lamp | 400 W |
| Fluorescent Lamp with electron. lamp ballast | 100 W |
| Fluorescent Lamp with convent. lamp ballast | 100 W |
| LED (230 V~) / CFL | 50 W |
| Input | Start / Stop (phase voltage) |
| Maximum set time: TC 14: TC 24: | 09:59:59 hh:mm:ss 99:59:59 hh:mm:ss |
| Minimum set time | 1 Sec. |
| Accuracy of reading | 1 Sec. |
| Time base | Quartz |
| Quartz accuracy (at 20°C) | ≤ ±0,5 Sec./day (Quartz accuracy optimized for typical ambient conditions) |
| Data storage | unlimited (E2-Prom) |
| Display | LCD 15 mm (7,5 mm) high numerals |
| Permitted ambient temperature | -10° … +50°C |
| Housing | self extinguishing thermoplastic |

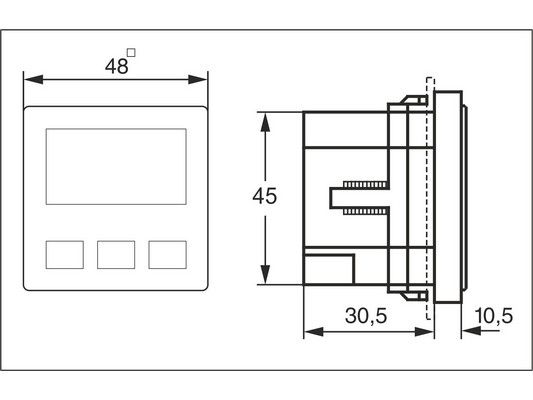

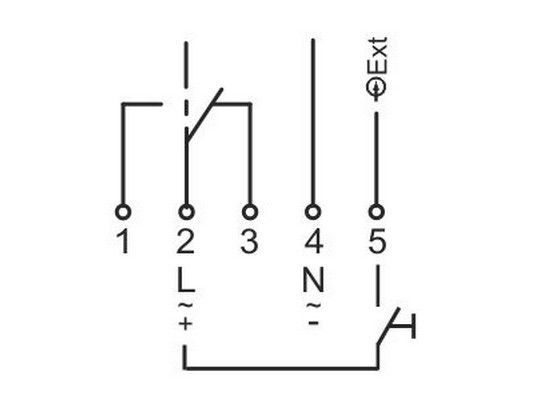

| Dimensions | 48 x 48 mm (to DIN EN 43700) |
| Mounting | Panel |
| Mounting aperture | Square: 45 x 45 mm Circle: Ø 50,5 mm |
| Type of connection | Screw clamps |
| Type of protection | IP 20 to DIN EN 60529 |
| Class of protection | II when installed according to regulations |
